ICSURO & Codorniu- Wastewater Treatment with Recycled Cork Stoppers as Absorbent Material in Wetlands (Ecorkwaste)
COMPANY SUMMARY
Codorniu
Codorníu is Spain’s longest-standing producer of wine and cava. It is a symbol of continuity, innovation and loyalty to its origins. Celebration has been Codorníu’s vocation from the outset. Its optimistic spirit of living every moment of life to the full remains intact.
The history of Codorníu is the story of eighteen generations of a vine-growing family. In 1872, Josep Raventós made the first bottle of cava, applying the traditional method to a blend of the Penedès grape varieties: Macabeo, Xarel·lo and Parellada. Codorníu reflects the history, tradition, passion and expertise of a family winery with more than 450 years of history, which today continues to maintain its leading position in the production of quality wines and cavas. The cellars in Sant Sadurní d’Anoia were declared a National Historic Artistic Monument in 1976, as one of the key works of Catalan modernism, created by Puig i Cadafalch.
ICSuro
The essential aim of the Catalan Cork Institute Foundation is to promote and develop the cork sector in its various aspects of production, transformation and commercialization through study, research, assessment and help to organizations, associations, companies and people involved in the cork and wine sector. The Cork Center Laboratory, the laboratory of the Catalan Cork Institute was created in 2001 to provide services to the different components of the value chain, both in the cork sector and in the wine sector. The services offered by the laboratory go through quality controls (sensory analysis, gas chromatography, microbiology and designs of internal protocols, among others); analysis of the composition of samples; expertise in litigation; validation of technical innovations introduced by the industry, advice and training.
EXECUTIVE SUMMARY
Cork is closely related to the maintenance of biodiversity, the heart of sustainable development, and the reduction of emissions and sequestration of CO2. The fact that corks are made of the bark harvested from living trees has led policymakers to encourage the use of cork over other, less natural, alternatives. From an environmental point of view, cork oak forests can contribute to climate change mitigation since they can sequester carbon dioxide (CO2) from the atmosphere and store it in their perennial tissues and in the soil as organic matter. The recycling of cork stoppers can retain carbon for very long periods. Granulated used cork stoppers were used as adsorbent material in treatment wetlands for the elimination of organic compounds in winery wastewater. With the wastewater treatment plant, we have an ecofriendly and sustainable solution to used cork stoppers in order to contribute to advancing towards a circular economy scenario in wineries.
SUSTAINABLE TARGET
During the project, the environmental, economic and social impact of the proposed solutions, covering the three aspects of sustainability were addressed for both wetland and gasification technologies.
The specific objectives are:
- To minimize landfilling of used cork stoppers and other cork byproducts by means of turning it into value.
- To demonstrate, at a pilot scale, an innovative hybrid treatment wetland based on the use of cork byproduct as granular media, for the treatment of agro-industrial wastewater (winery wastewater).
- Reduce water consumption in the winery industry, fostering potential reuse within the production system, while achieving higher effluent quality due to treatment wetlands implementation.
- Compare the innovative and sustainable treatment wetlands against alternative current practices using the same indicators.
During the project, the environmental, economic and social impact of the proposed solutions, covering the three aspects of sustainability were addressed for both wetland and gasification technologies.
START TO END DATE
13/03/2017 – ongoing
PARTNERS
CODORNIÍU and CATALAN CORK INSTITUTE FOUNDATION
REASON WHY/ MOTIVATION
In the cork sector, many flows are interrelated and, therefore, are recycled in the same industry or sold and reused in another industry. According to the model made, 11517 tones (40%) of cork per year are considered by-products in Catalonia. The byproduct could have different destinations, but most of them have a very low added value and therefore it devalues this material. ECORKWASTE project aims to minimize the amount of cork byproduct devalued, while enhancing its reuse and valorization.
DESCRIPTION AND STRATEGIES

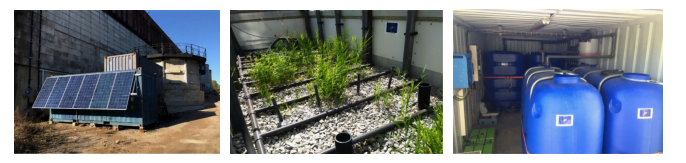

Granulated used cork stoppers with a certain particle size were used as adsorbent material in treatment wetlands for the elimination of organic compounds in winery wastewater. Cork stopper granulates can be used for wastewater treatment, considering their biosorbent properties. The ECORKWASTE project built a 14 m2 pilot aerated saturated treatment wetland filled with 5 mm Ø cork granulates as a filter medium, and was adapted to operate as a tertiary treatment for winery wastewater. The plant was built as a compact, modular and mobile system, using a 20 ft. shipping container.
The monitoring and remote operation of the pilot treatment wetland plant started in March 13, 2017, including hydraulic, electrical and automation systems. The water treated per operation cycle was 2.5 m3.
Sensors in the wetland bed allowed a 24h monitoring of the internal conditions of the bed to provide real-time information for DO (Dissolved oxygen), Temperature and pH. These measures allowed decision-making regarding the operation to extend its lifetime, increase its efficiency and reduce operational costs, like energy consumption in aerated periods, and reduce carbon footprint.
The aerated saturated vertical treatment wetland, with cork byproduct granulates used as granular media, was effective for pollutants (suspended solids, organic nitrogen, nitrates) and metals removal (nickel and copper) from winery wastewater. The pesticides studied have not been detected in the cork samples, so the cork byproduct granulates in the wetland have not gone over their useful life.
The micrographs of the cork granulate used as filter media in the treatment wetland, after 1.5 years of operation, showed that the cork byproduct maintained its original and internal structure and therefore has not yet reached the end of its useful life.
ACHIEVEMENTS SO FAR
The main achievements have been:
- The decline of used cork stoppers landfill disposal
- The achievement of higher rates of cork byproduct reuse and valorization
- The increase in water savings in the winery
- Minimizing the effects of landfilling on human health and the environment.

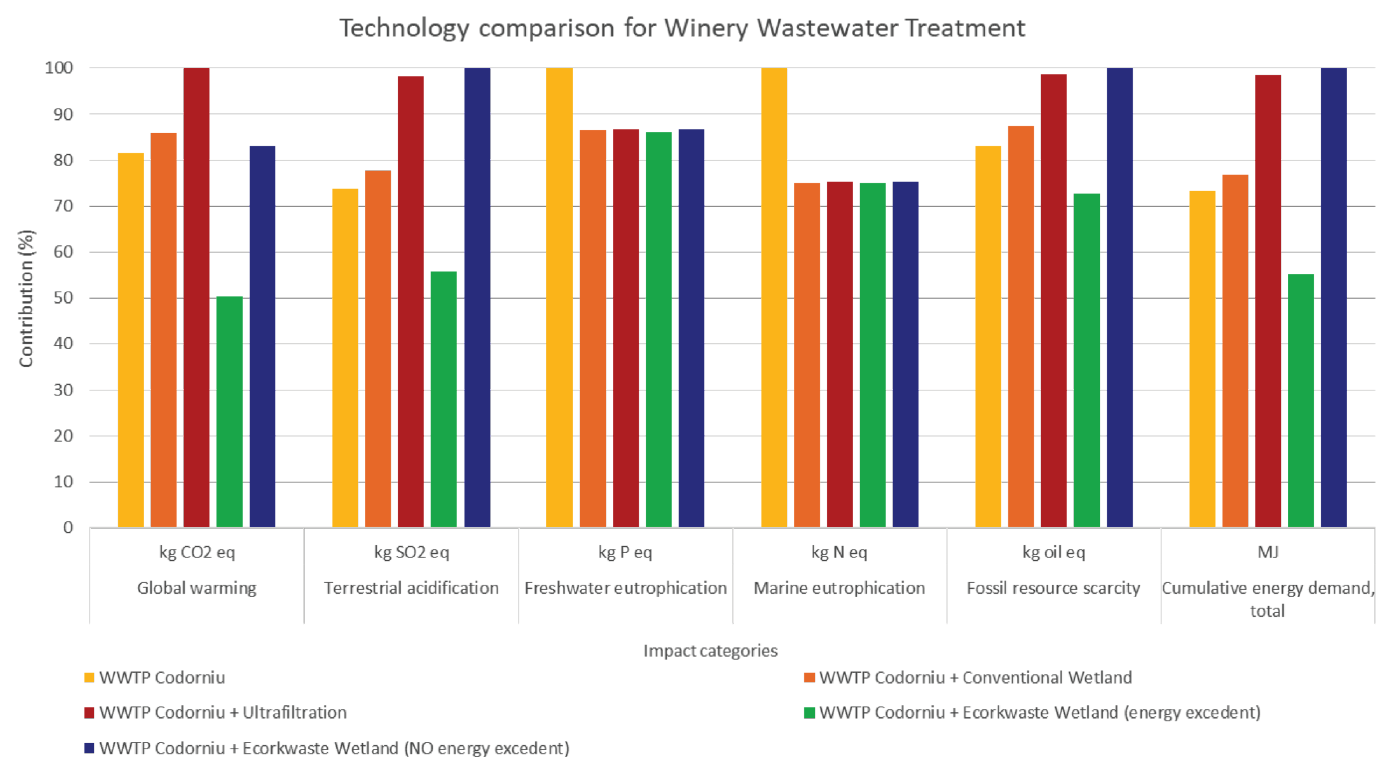

The proposed solution shows an environmental impact reduction between 13 and 40 % depending on the impact category studied. The technology used shows a reduction between 13 and 34% in the eutrophication category.
LESSONS LEARNED
The aerated saturated vertical treatment wetland, with cork granulates used as granular media, was effective for: pollutants (suspended solids, organic nitrogen, nitrates), pesticides (Metalaxyl, Chlorpyrifos and Tebuconazole) and metals removal (nickel and copper) from winery wastewater. The pesticides studied have not been detected in the cork samples. So the cork byproduct granulates in the wetland have not gone over their useful life. The micrographs of the cork granulate used as filter media in the treatment wetland, after 1.5 years of operation, showed that cork byproduct maintained its original and internal structure and therefore has not yet reached the end of its useful life.
NEXT STEPS
Results demonstrated the potential gains in comparison to the current treatment practices, being attractive technologies for the long-term sustainability of the wine sector. The next steps are the diffusion of the solution and its application in different wineries that may be interested in recycling cork stoppers.
POTENTIAL FOR REPLICATION
The wetland can be applied in any winery.
CONTACT
Albert Hereu. Manager Catalan Cork Institute Foundation. ahereu@icsuro.comecosystem
